[Advanced Spring Boot] Tự dựng authorization server: Spring Authorization Server và Keycloak

curl -s "https://start.spring.io/starter.zip?type=gradle-project&language=java&bootVersion=4.1.1&javaVersion=21&groupId=com.example&artifactId=authserver&name=authserver&packageName=com.example.authserver&dependencies=web,security,oauth2-authorization-server,jdbc,postgresql,flyway" -o authserver.zip

dependencies {
	implementation 'org.springframework.boot:spring-boot-starter-flyway'
	implementation 'org.springframework.boot:spring-boot-starter-jdbc'
	implementation 'org.springframework.boot:spring-boot-starter-security'
	implementation 'org.springframework.boot:spring-boot-starter-security-oauth2-authorization-server'
	implementation 'org.springframework.boot:spring-boot-starter-webmvc'
	implementation 'org.flywaydb:flyway-database-postgresql'
	runtimeOnly 'org.postgresql:postgresql'
	testImplementation 'org.springframework.boot:spring-boot-starter-flyway-test'
	testImplementation 'org.springframework.boot:spring-boot-starter-jdbc-test'
	testImplementation 'org.springframework.boot:spring-boot-starter-security-oauth2-authorization-server-test'
	testImplementation 'org.springframework.boot:spring-boot-starter-security-test'
	testImplementation 'org.springframework.boot:spring-boot-starter-webmvc-test'
	testRuntimeOnly 'org.junit.platform:junit-platform-launcher'
}

./gradlew dependencies --configuration runtimeClasspath

+--- org.springframework.boot:spring-boot-starter-security-oauth2-authorization-server -> 4.1.1
|    +--- org.springframework.boot:spring-boot-starter:4.1.1 (*)
|    +--- org.springframework.boot:spring-boot-starter-security:4.1.1 (*)
|    +--- org.springframework.boot:spring-boot-starter-webmvc:4.1.1
|    \--- org.springframework.boot:spring-boot-security-oauth2-authorization-server:4.1.1
|         +--- org.springframework.boot:spring-boot-security:4.1.1 (*)
|         +--- org.springframework.boot:spring-boot:4.1.1 (*)
|         \--- org.springframework.security:spring-security-oauth2-authorization-server:7.1.1
|              +--- org.springframework.security:spring-security-web:7.1.1 (*)
|              +--- org.springframework.security:spring-security-oauth2-core:7.1.1
|              +--- org.springframework.security:spring-security-oauth2-jose:7.1.1
|              |    \--- com.nimbusds:nimbus-jose-jwt:10.9.1
|              +--- org.springframework.security:spring-security-oauth2-resource-server:7.1.1
|              +--- org.springframework:spring-core:7.0.9 (*)
|              +--- com.nimbusds:nimbus-jose-jwt:10.9.1
|              \--- tools.jackson.core:jackson-databind:3.2.1 -> 3.1.5 (*)

r$InitializeUserDetailsManagerConfigurer : Global AuthenticationManager configured with UserDetailsService bean with name inMemoryUserDetailsManager
c.e.authserver.AuthserverApplication     : Started AuthserverApplication in 1.493 seconds (process running for 1.721)

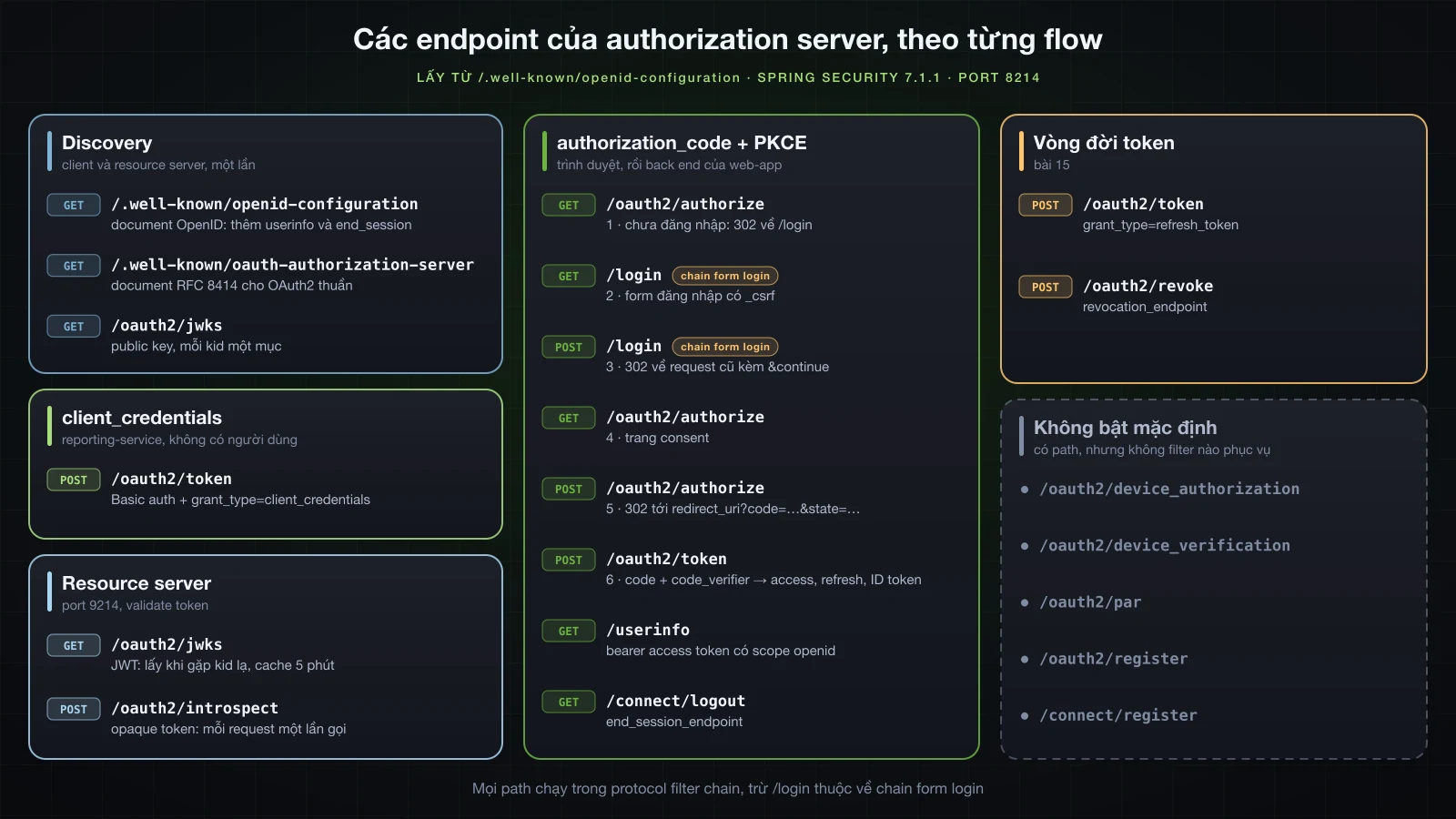

curl -s http://localhost:8214/.well-known/openid-configuration | jq .

{
  "issuer": "http://localhost:8214",
  "authorization_endpoint": "http://localhost:8214/oauth2/authorize",
  "token_endpoint": "http://localhost:8214/oauth2/token",
  "token_endpoint_auth_methods_supported": [
    "client_secret_basic",
    "client_secret_post",
    "client_secret_jwt",
    "private_key_jwt",
    "tls_client_auth",
    "self_signed_tls_client_auth"
  ],
  "jwks_uri": "http://localhost:8214/oauth2/jwks",
  "userinfo_endpoint": "http://localhost:8214/userinfo",
  "end_session_endpoint": "http://localhost:8214/connect/logout",
  "response_types_supported": [
    "code"
  ],
  "grant_types_supported": [
    "authorization_code",
    "client_credentials",
    "refresh_token",
    "urn:ietf:params:oauth:grant-type:token-exchange"
  ],
  "revocation_endpoint": "http://localhost:8214/oauth2/revoke",
  "revocation_endpoint_auth_methods_supported": [
    "client_secret_basic",
    "client_secret_post",
    "client_secret_jwt",
    "private_key_jwt",
    "tls_client_auth",
    "self_signed_tls_client_auth"
  ],
  "introspection_endpoint": "http://localhost:8214/oauth2/introspect",
  "introspection_endpoint_auth_methods_supported": [
    "client_secret_basic",
    "client_secret_post",
    "client_secret_jwt",
    "private_key_jwt",
    "tls_client_auth",
    "self_signed_tls_client_auth"
  ],
  "code_challenge_methods_supported": [
    "S256"
  ],
  "tls_client_certificate_bound_access_tokens": true,
  "dpop_signing_alg_values_supported": [
    "RS256",
    "RS384",
    "RS512",
    "PS256",
    "PS384",
    "PS512",
    "ES256",
    "ES384",
    "ES512"
  ],
  "subject_types_supported": [
    "public"
  ],
  "id_token_signing_alg_values_supported": [
    "RS256"
  ],
  "scopes_supported": [
    "openid"
  ]
}

o.s.s.web.DefaultSecurityFilterChain     : Will secure org.springframework.security.config.annotation.web.configurers.oauth2.server.authorization.OAuth2AuthorizationServerConfigurer$$Lambda/0x0000007001567dc0@5df2023c with filters: DisableEncodeUrlFilter, WebAsyncManagerIntegrationFilter, SecurityContextHolderFilter, AuthorizationServerContextFilter, HeaderWriterFilter, CsrfFilter, OidcLogoutEndpointFilter, LogoutFilter, OAuth2AuthorizationServerMetadataEndpointFilter, OAuth2AuthorizationCodeRequestValidatingFilter, OidcProviderConfigurationEndpointFilter, NimbusJwkSetEndpointFilter, OAuth2ProtectedResourceMetadataFilter, OAuth2ClientAuthenticationFilter, BearerTokenAuthenticationFilter, RequestCacheAwareFilter, SecurityContextHolderAwareRequestFilter, AnonymousAuthenticationFilter, ExceptionTranslationFilter, AuthorizationFilter, OAuth2AuthorizationEndpointFilter, OAuth2TokenEndpointFilter, OAuth2TokenIntrospectionEndpointFilter, OAuth2TokenRevocationEndpointFilter, OidcUserInfoEndpointFilter
o.s.s.web.DefaultSecurityFilterChain     : Will secure any request with filters: DisableEncodeUrlFilter, WebAsyncManagerIntegrationFilter, SecurityContextHolderFilter, HeaderWriterFilter, CsrfFilter, LogoutFilter, UsernamePasswordAuthenticationFilter, DefaultResourcesFilter, DefaultLoginPageGeneratingFilter, DefaultLogoutPageGeneratingFilter, RequestCacheAwareFilter, SecurityContextHolderAwareRequestFilter, AnonymousAuthenticationFilter, ExceptionTranslationFilter, AuthorizationFilter

curl -i -s "$AUTH_URL"
curl -i -s -H 'Accept: text/html' "$AUTH_URL"

HTTP/1.1 401
Set-Cookie: JSESSIONID=CD47F99D93181EE8206D168853C54FC8; Path=/; HttpOnly
WWW-Authenticate: Bearer resource_metadata="http://localhost:8214/.well-known/oauth-protected-resource"
Content-Length: 0

HTTP/1.1 302
Set-Cookie: JSESSIONID=F62DAB9F49A1CCA1F1C9CC51051B16B4; Path=/; HttpOnly
Location: http://localhost:8214/login
Content-Length: 0

package com.example.authserver.security;

import java.util.Set;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.annotation.Order;
import org.springframework.http.MediaType;
import org.springframework.security.config.Customizer;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.web.SecurityFilterChain;
import org.springframework.security.web.authentication.LoginUrlAuthenticationEntryPoint;
import org.springframework.security.web.util.matcher.MediaTypeRequestMatcher;

@Configuration
public class SecurityConfig {

    @Bean
    @Order(1)
    SecurityFilterChain authorizationServerSecurityFilterChain(HttpSecurity http) {
        http
                .oauth2AuthorizationServer(authorizationServer -> {
                    http.securityMatcher(authorizationServer.getEndpointsMatcher());
                    authorizationServer.oidc(Customizer.withDefaults());
                })
                .authorizeHttpRequests(auth -> auth.anyRequest().authenticated())
                .oauth2ResourceServer(resourceServer -> resourceServer.jwt(Customizer.withDefaults()))
                .exceptionHandling(exceptions -> exceptions.defaultAuthenticationEntryPointFor(
                        new LoginUrlAuthenticationEntryPoint("/login"), htmlPages()));
        return http.build();
    }

    @Bean
    @Order(2)
    SecurityFilterChain defaultSecurityFilterChain(HttpSecurity http) {
        http
                .authorizeHttpRequests(auth -> auth
                        .requestMatchers("/error").permitAll()
                        .anyRequest().authenticated())
                .formLogin(Customizer.withDefaults());
        return http.build();
    }

    private static MediaTypeRequestMatcher htmlPages() {
        MediaTypeRequestMatcher matcher = new MediaTypeRequestMatcher(MediaType.TEXT_HTML);
        matcher.setIgnoredMediaTypes(Set.of(MediaType.ALL));
        return matcher;
    }
}

Caused by: org.springframework.security.web.UnreachableFilterChainException: A filter chain that matches any request [DefaultSecurityFilterChain defined as 'defaultSecurityFilterChain' in [class path resource [com/example/authserver/security/SecurityConfig.class]] matching [any request] and having filters […]] has already been configured, which means that this filter chain [DefaultSecurityFilterChain defined as 'authorizationServerSecurityFilterChain' in [class path resource [com/example/authserver/security/SecurityConfig.class]] matching [org.springframework.security.config.annotation.web.configurers.oauth2.server.authorization.OAuth2AuthorizationServerConfigurer$$Lambda/0x0000008801440870@31aab981] and having filters […]] will never get invoked. Please use `HttpSecurity#securityMatcher` to ensure that there is only one filter chain configured for 'any request' and that the 'any request

curl -i -s -u reporting-service:YKEH82IfQ7fwVscNczMHPi-X -d grant_type=client_credentials -d scope=catalog.read http://localhost:8214/oauth2/token

HTTP/1.1 200
Content-Type: application/json;charset=UTF-8
Content-Length: 777

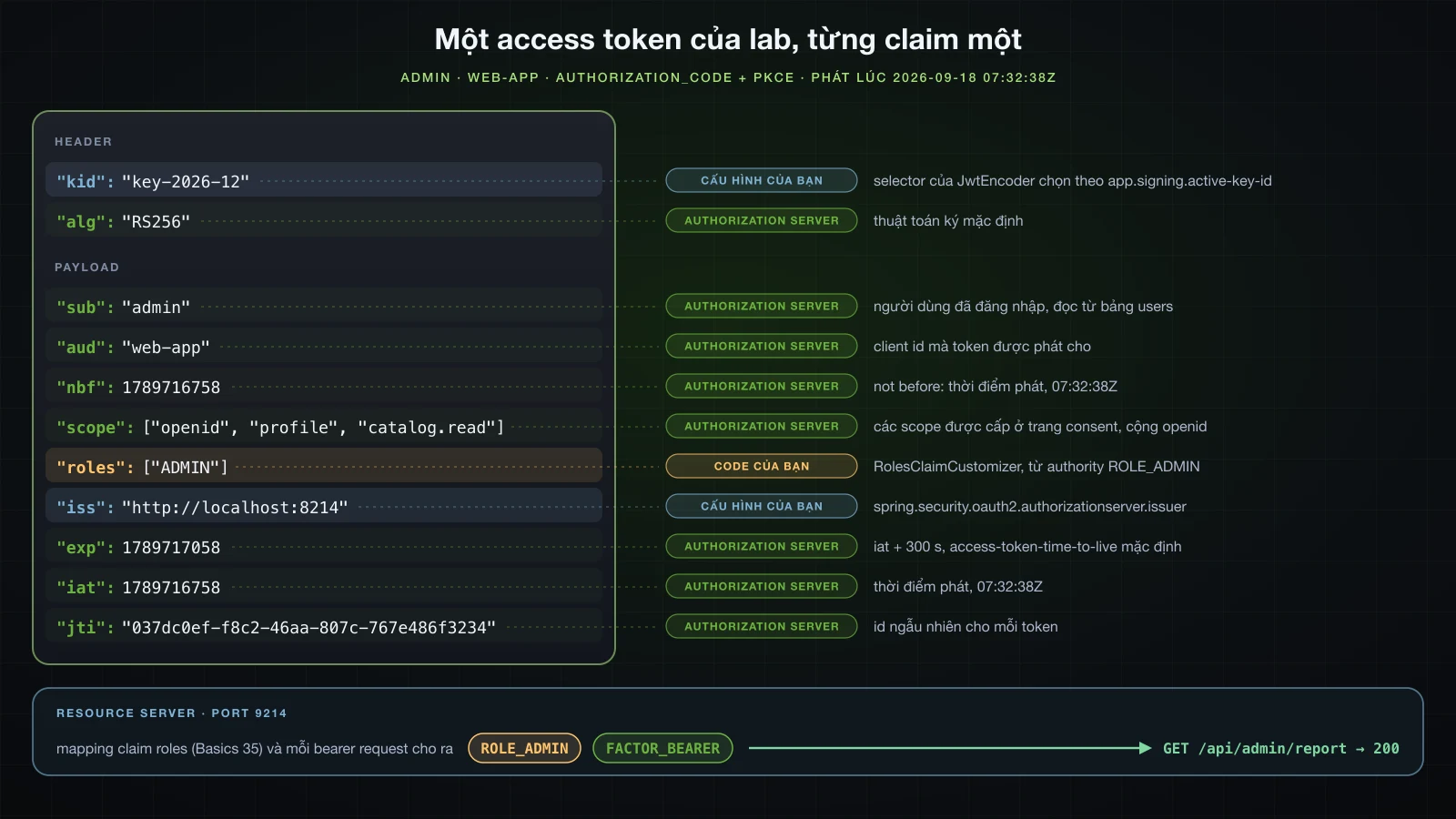

{"access_token":"eyJraWQiOiIyNjczMTA3Zi1lNTI4LTRkNjEtOTIxNC1lNzQwMTY5ODRkOGIiLCJhbGciOiJSUzI1NiJ9.eyJzdWIiOiJyZXBvcnRpbmctc2VydmljZSIsImF1ZCI6InJlcG9ydGluZy1zZXJ2aWNlIiwibmJmIjoxNzg5NzE1NTE0LCJzY29wZSI6WyJjYXRhbG9nLnJlYWQiXSwiaXNzIjoiaHR0cDovL2xvY2FsaG9zdDo4MjE0IiwiZXhwIjoxNzg5NzE1ODE0LCJpYXQiOjE3ODk3MTU1MTQsImp0aSI6ImEyY2E3ZmQ4LTE2NmItNDY3Yi1hNGQ2LTM4MWU4NWM2YzI3NyJ9.ArjlsLCMyXdMLDyduV66Nk1bROJIfuYnm4Eac2wpgqq3bqb23cfvkxcHaiogRmv6wMzYkm2FQUB3ULrxkN7vl5BJE-V5lDWYTNqQGJP642RBjDhKC3b8__jwBpOiGxdtnqTfD2xw4Lq2OwArvmMLT8iPh5Q5Rz1rFFp8WLsx1kLTMWJLElH4eWkGvaery5nMyXxTtiOO31FmyvFT12-rIeCjF4sUOaG1SIxzVAjhysU_dtexBXQHy-87dKPExAB7NwA6gF3fbD0UStQcUNkFufFmVrFYr8kJxKnIC0is3ecTmjBX_-wN2UrPJnvNKgqvhr7tsg9cf78d8MQPxVboFA","scope":"catalog.read","token_type":"Bearer","expires_in":299}

{
  "kid": "2673107f-e528-4d61-9214-e74016984d8b",
  "alg": "RS256"
}

{
  "sub": "reporting-service",
  "aud": "reporting-service",
  "nbf": 1789715514,
  "scope": [
    "catalog.read"
  ],
  "iss": "http://localhost:8214",
  "exp": 1789715814,
  "iat": 1789715514,
  "jti": "a2ca7fd8-166b-467b-a4d6-381e85c6c277"
}

curl -s http://localhost:8214/oauth2/jwks | jq .

{
  "keys": [
    {
      "kty": "RSA",
      "e": "AQAB",
      "kid": "2673107f-e528-4d61-9214-e74016984d8b",
      "n": "u3CK1Dh65ee5jjU-WsN8YdTC-UKh6cwWhImm9j8KHFTq0blTB-0qtipDbHoWmiImekafNM130fClzDqEii6coBiWNXKN_nPCoD7naP_USiN264KDBOZ4R0HBa4ScwKHiua_TJDReFxxDq0h6BOxwdpODTuzNalRp2SDrzNb4gRdIeiajJYYC0V6wo4BYlxaKUQR0zhkH2F1l2Zn6wKFESeV2f3YcIPaSadJRcCNfm-0wi9ADTieirXkKGbfwg8448wO94xL4mWgHhFg0dYCsb6PbCeWxr3EJtIMlPIJLSVJNhrHTa9DunSZst5kvpgO0cxMaRVq6cwnoDDhP2sSYSQ"
    }
  ]
}

VERIFIER=$(openssl rand 32 | b64url)
CHALLENGE=$(printf '%s' "$VERIFIER" | openssl dgst -sha256 -binary | b64url)
AUTH_URL="http://localhost:8214/oauth2/authorize?response_type=code&client_id=web-app&redirect_uri=http://127.0.0.1:10214/login/oauth2/code/web-app&scope=openid%20profile%20catalog.read&state=af0ifjsldkj&code_challenge=$CHALLENGE&code_challenge_method=S256"

verifier=MomTxxPZjSh15C6IONsnNzDCk5eqo2gAGspUS95oKi8 challenge=If9Ga0pCXRVHixVYqJJHGCC6hsjkIEkQzwof5bIsZck

curl -i -s -c cj.txt -b cj.txt -H 'Accept: text/html' --data-urlencode username=alice --data-urlencode password=Iua27v1PAG-AQ772BVq-TZts --data-urlencode "_csrf=$CSRF" http://localhost:8214/login

HTTP/1.1 302
Set-Cookie: JSESSIONID=225161ECABA7AF8C8927FEAB7CBE8C4F; Path=/; HttpOnly
Location: http://localhost:8214/oauth2/authorize?response_type=code&client_id=web-app&redirect_uri=http://127.0.0.1:10214/login/oauth2/code/web-app&scope=openid%20profile%20catalog.read&state=af0ifjsldkj&code_challenge=If9Ga0pCXRVHixVYqJJHGCC6hsjkIEkQzwof5bIsZck&code_challenge_method=S256&continue

<title>Consent required</title>
<span class="font-weight-bold text-primary">web-app</span> wants to access your account <span class="font-weight-bold">alice</span>
<form name="consent_form" method="post" action="/oauth2/authorize">
<input type="hidden" name="client_id" value="web-app">
<input type="hidden" name="state" value="xOh7ENUuYNFP8bvm0QgN1c8xL8nOiOc5mJl6rk2D0QY=">
<input class="form-check-input" type="checkbox" name="scope" value="profile" id="profile">
<input class="form-check-input" type="checkbox" name="scope" value="catalog.read" id="catalog.read">
<button class="btn btn-primary btn-lg" type="submit" id="submit-consent">Submit Consent</button>
<button class="btn btn-link regular" type="button" onclick="cancelConsent();" id="cancel-consent">Cancel</button>

curl -i -s -c cj.txt -b cj.txt -H 'Accept: text/html' --data-urlencode client_id=web-app --data-urlencode "state=$CONSENT_STATE" --data-urlencode scope=profile --data-urlencode scope=catalog.read http://localhost:8214/oauth2/authorize

HTTP/1.1 302
Location: http://127.0.0.1:10214/login/oauth2/code/web-app?code=k2yC0IY8_3dDLktaDiSfe4FnkoCHgaXFB6aWKU-v5w7OKeU25PPVkpmsLuCrX6iFbIZBatgnF_M4fmsWfBwcnG9d9xtVcmW_5ey_tp_IgUxL1YqhkQjXhdygrNP6JmjB&state=af0ifjsldkj

curl -i -s -u web-app:qPzyIVmf35_MSv6B67GLD6-i -d grant_type=authorization_code --data-urlencode "code=$CODE" --data-urlencode redirect_uri=http://127.0.0.1:10214/login/oauth2/code/web-app --data-urlencode "code_verifier=$VERIFIER" http://localhost:8214/oauth2/token

HTTP/1.1 200
Content-Type: application/json;charset=UTF-8
Content-Length: 1681

{"access_token":"eyJraWQiOiIyNjczMTA3Zi1lNTI4LTRkNjEtOTIxNC1lNzQwMTY5ODRkOGIiLCJhbGciOiJSUzI1NiJ9.eyJzdWIiOiJhbGljZSIsImF1ZCI6IndlYi1hcHAiLCJuYmYiOjE3ODk3MTU1NjIsInNjb3BlIjpbIm9wZW5pZCIsInByb2ZpbGUiLCJjYXRhbG9nLnJlYWQiXSwiaXNzIjoiaHR0cDovL2xvY2FsaG9zdDo4MjE0IiwiZXhwIjoxNzg5NzE1ODYyLCJpYXQiOjE3ODk3MTU1NjIsImp0aSI6IjY0NjgzZTNkLWJmMGEtNGRlMi04NTlmLTM1OGRjZTg2ZTQ3NSJ9.fAbDNACG-2ZqVRJYNrf6TP3y6LA6AbB6MvpR8OMu6cyJxcJ_9R-0zDX2F5D5A5CCigPx4n2dXDDe8R_26mtBES6KN8qyyf7eaaQCuspomzYtZvOKpgYoZBdhHp52tZc95Y9pnNd1e55_k5FZBP3bSBqcpeK-1jr-f2MIMZl6Ppu12Jz8RSrO9O7sRB8R-brn1xd8jZXywg1dfOoWw6yAdmXGytljtaZvBQrzNQAov9MiYVEEBY6Mi-Xvjm1hDTeyd76OYkBwZxunXZSce_QcKbZU3KL3vQMGdrzyh9_COLHRtNQUcAFAnKO5PCnfIOg5pGoaGygFa9OhW_W5gecbJw","refresh_token":"1hd0aIfRyBexuv_NAz1Uj5dbvw6JMdPm6Bn14hZ8GkSjgTb4UwaXoI8eXSB6ONTcmNuByR14RhVnsnhuihrSHeJeJrwocboFsBwFOi67xx5TDd1_9Sv-6jBUSLTuwYBb","scope":"openid profile catalog.read","id_token":"eyJraWQiOiIyNjczMTA3Zi1lNTI4LTRkNjEtOTIxNC1lNzQwMTY5ODRkOGIiLCJhbGciOiJSUzI1NiJ9.eyJzdWIiOiJhbGljZSIsImF1ZCI6IndlYi1hcHAiLCJhenAiOiJ3ZWItYXBwIiwiYXV0aF90aW1lIjoxNzg5NzE1NTQzLCJpc3MiOiJodHRwOi8vbG9jYWxob3N0OjgyMTQiLCJleHAiOjE3ODk3MTczNjIsImlhdCI6MTc4OTcxNTU2MiwianRpIjoiNzg2ZmE3ZmYtZDMwNS00MjEyLWI5ODEtMTllNjZlMzNmYzYzIiwic2lkIjoibEluTXdqQTJOcFNweE1KMXRpaC1WM1V6cnNOOEktY3JsV0FxcEFtTVBTayJ9.kFkaqeeQBhDF1uTnZRWAW8ZNZ3qrJDq9EFxFYOcRPdBxq9v_5Am48WDsyvFnUiUIuK57QwuqEs-87OyygDeYdx5hr6qJVXki34W6Uo2zoDZEqM2aGYoPHRKrquUUfO1NVD2P3pDMXjUyRXwue6vJtPzEnK94rzl2mAQuKNt3WVPZAe0MnJV-Nt2c0a4SdxFLzMQSFxoDEMN4qjRiOlhW9vNQ__ULFkov3TjLdJNmLItRoBB5QjRaCGsM2wRkTbGBAT9KxnZxVIjVbI_zJj2fv7ZmwkfDlh5RbTk5kiBl4RmkaK3_h7QIN5-iqh9NJZt2iWraBmbGsMxN1oEuF_DE9Q","token_type":"Bearer","expires_in":299}

{
  "sub": "alice",
  "aud": "web-app",
  "azp": "web-app",
  "auth_time": 1789715543,
  "iss": "http://localhost:8214",
  "exp": 1789717362,
  "iat": 1789715562,
  "jti": "786fa7ff-d305-4212-b981-19e66e33fc63",
  "sid": "lInMwjA2NpSpxMJ1tih-V3UzrsN8I-crlWAqpAmMPSk"
}

HTTP/1.1 401
Content-Type: application/json;charset=UTF-8
Content-Length: 26

{"error":"invalid_client"}

curl -i -s -H 'Accept: text/html' "http://localhost:8214/oauth2/authorize?response_type=code&client_id=web-app&redirect_uri=https://evil.example/callback&scope=openid&state=s1&code_challenge=$CHALLENGE&code_challenge_method=S256"

HTTP/1.1 302
Set-Cookie: JSESSIONID=0D1C82FC1C1A6072CE68E5382738BA8D; Path=/; HttpOnly
Location: http://localhost:8214/login;jsessionid=0D1C82FC1C1A6072CE68E5382738BA8D

o.s.security.web.FilterChainProxy        : Securing GET /oauth2/authorize?response_type=code&client_id=web-app&redirect_uri=https://evil.example/callback&scope=openid&state=s1&code_challenge=If9Ga0pCXRVHixVYqJJHGCC6hsjkIEkQzwof5bIsZck&code_challenge_method=S256
o.s.security.web.FilterChainProxy        : Securing GET /error?response_type=code&client_id=web-app&redirect_uri=https://evil.example/callback&scope=openid&state=s1&code_challenge=If9Ga0pCXRVHixVYqJJHGCC6hsjkIEkQzwof5bIsZck&code_challenge_method=S256
o.s.s.w.a.AnonymousAuthenticationFilter  : Set SecurityContextHolder to anonymous SecurityContext
o.s.s.w.s.HttpSessionRequestCache        : Saved request http://localhost:8214/error?response_type=code&client_id=web-app&redirect_uri=https://evil.example/callback&scope=openid&state=s1&code_challenge=If9Ga0pCXRVHixVYqJJHGCC6hsjkIEkQzwof5bIsZck&code_challenge_method=S256&continue to session
o.s.s.web.DefaultRedirectStrategy        : Redirecting to /login;jsessionid=D4373069EB50645E355F81CA69B3FB2E

HTTP/1.1 400
Content-Type: text/html;charset=UTF-8
Content-Length: 277

<html><body><h1>Whitelabel Error Page</h1><p>This application has no explicit mapping for /error, so you are seeing this as a fallback.</p><div id='created'>Fri Sep 18 14:18:55 ICT 2026</div><div>There was an unexpected error (type=Bad Request, status=400).</div></body></html>

curl -i -s -H 'Accept: text/html' "http://localhost:8214/oauth2/authorize?response_type=code&client_id=spa&redirect_uri=http://127.0.0.1:10214/spa/callback&scope=openid%20catalog.read&state=s2"

HTTP/1.1 302
Location: http://127.0.0.1:10214/spa/callback?error=invalid_request&error_description=OAuth%202.0%20Parameter%3A%20code_challenge&error_uri=https%3A%2F%2Fdatatracker.ietf.org%2Fdoc%2Fhtml%2Frfc7636%23section-4.4.1&state=s2

HTTP/1.1 400
Content-Type: application/json;charset=UTF-8
Content-Length: 25
Connection: close

{"error":"invalid_grant"}

package com.example.resourceserver.common;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.Customizer;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.web.SecurityFilterChain;

@Configuration
public class SecurityConfig {

    @Bean
    SecurityFilterChain apiSecurityFilterChain(HttpSecurity http, ProblemDetailSecurityHandler problemHandler) {
        http
                .securityMatcher("/api/**")
                .authorizeHttpRequests(auth -> auth
                        .requestMatchers("/api/admin/**").hasRole("ADMIN")
                        .anyRequest().authenticated())
                .oauth2ResourceServer(oauth2 -> oauth2
                        .jwt(Customizer.withDefaults())
                        .authenticationEntryPoint(problemHandler)
                        .accessDeniedHandler(problemHandler))
                .exceptionHandling(exceptions -> exceptions
                        .authenticationEntryPoint(problemHandler)
                        .accessDeniedHandler(problemHandler))
                .csrf(csrf -> csrf.disable())
                .sessionManagement(session -> session.sessionCreationPolicy(SessionCreationPolicy.STATELESS));
        return http.build();
    }
}

package com.example.resourceserver.common;

import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.net.URI;
import org.springframework.http.HttpStatus;
import org.springframework.http.MediaType;
import org.springframework.http.ProblemDetail;
import org.springframework.security.access.AccessDeniedException;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.oauth2.server.resource.web.BearerTokenAuthenticationEntryPoint;
import org.springframework.security.oauth2.server.resource.web.access.BearerTokenAccessDeniedHandler;
import org.springframework.security.web.AuthenticationEntryPoint;
import org.springframework.security.web.access.AccessDeniedHandler;
import org.springframework.stereotype.Component;
import tools.jackson.databind.json.JsonMapper;

@Component
public class ProblemDetailSecurityHandler implements AuthenticationEntryPoint, AccessDeniedHandler {

    private final JsonMapper jsonMapper;
    private final BearerTokenAuthenticationEntryPoint bearerEntryPoint = new BearerTokenAuthenticationEntryPoint();
    private final BearerTokenAccessDeniedHandler bearerDeniedHandler = new BearerTokenAccessDeniedHandler();

    public ProblemDetailSecurityHandler(JsonMapper jsonMapper) {
        this.jsonMapper = jsonMapper;
        this.bearerEntryPoint.setRealmName("catalogue");
        this.bearerDeniedHandler.setRealmName("catalogue");
    }

    @Override
    public void commence(HttpServletRequest request, HttpServletResponse response,
                         AuthenticationException ex) throws IOException {
        bearerEntryPoint.commence(request, response, ex);
        write(request, response, "Valid credentials are required to access this resource.");
    }

    @Override
    public void handle(HttpServletRequest request, HttpServletResponse response,
                       AccessDeniedException ex) throws IOException {
        bearerDeniedHandler.handle(request, response, ex);
        write(request, response, "You are not allowed to perform this operation.");
    }

    private void write(HttpServletRequest request, HttpServletResponse response, String detail) throws IOException {
        ProblemDetail problem = ProblemDetail.forStatusAndDetail(HttpStatus.valueOf(response.getStatus()), detail);
        problem.setInstance(URI.create(request.getRequestURI()));
        response.setContentType(MediaType.APPLICATION_PROBLEM_JSON_VALUE);
        jsonMapper.writeValue(response.getOutputStream(), problem);
    }
}

package com.example.resourceserver.account;

import java.util.List;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class MeController {

    public record MeResponse(String name, List<String> authorities) {
    }

    @GetMapping("/api/me")
    public MeResponse me(Authentication authentication) {
        List<String> authorities = authentication.getAuthorities().stream()
                .map(GrantedAuthority::getAuthority)
                .sorted()
                .toList();
        return new MeResponse(authentication.getName(), authorities);
    }
}

package com.example.resourceserver.report;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class ReportController {

    public record SalesReport(String period, long orders) {
    }

    @GetMapping("/api/admin/report")
    public SalesReport report() {
        return new SalesReport("2026-09", 42);
    }
}

HTTP/1.1 401
WWW-Authenticate: Bearer realm="catalogue", error="invalid_token", error_description="An error occurred while attempting to decode the Jwt: Signed JWT rejected: Another algorithm expected, or no matching key(s) found", error_uri="https://tools.ietf.org/html/rfc6750#section-3.1", resource_metadata="http://localhost:9214/.well-known/oauth-protected-resource"
Content-Type: application/problem+json

{"detail":"Valid credentials are required to access this resource.","instance":"/api/me","status":401,"title":"Unauthorized"}

mkdir -p keys
for k in key-2026-09 key-2026-12; do
  openssl genpkey -algorithm RSA -pkeyopt rsa_keygen_bits:2048 -out keys/$k.pem
  openssl pkey -in keys/$k.pem -pubout -out keys/$k.pub.pem
done

package com.example.authserver.key;

import java.util.List;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.core.io.Resource;

@ConfigurationProperties("app.signing")
public record SigningKeyProperties(List<Key> keys) {

    public record Key(String id, Resource publicKey, Resource privateKey) {
    }
}

package com.example.authserver.key;

import com.nimbusds.jose.jwk.JWK;
import com.nimbusds.jose.jwk.JWKSet;
import com.nimbusds.jose.jwk.RSAKey;
import com.nimbusds.jose.jwk.source.ImmutableJWKSet;
import com.nimbusds.jose.jwk.source.JWKSource;
import com.nimbusds.jose.proc.SecurityContext;
import java.io.IOException;
import java.io.InputStream;
import java.io.UncheckedIOException;
import java.security.interfaces.RSAPrivateKey;
import java.security.interfaces.RSAPublicKey;
import java.util.List;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.convert.converter.Converter;
import org.springframework.core.io.Resource;
import org.springframework.security.converter.RsaKeyConverters;

@Configuration
@EnableConfigurationProperties(SigningKeyProperties.class)
public class SigningKeyConfig {

    @Bean
    JWKSource<SecurityContext> jwkSource(SigningKeyProperties properties) {
        List<JWK> keys = properties.keys().stream().map(SigningKeyConfig::toJwk).toList();
        return new ImmutableJWKSet<>(new JWKSet(keys));
    }

    private static JWK toJwk(SigningKeyProperties.Key key) {
        RSAKey.Builder builder = new RSAKey.Builder(read(key.publicKey(), RsaKeyConverters.x509()))
                .keyID(key.id());
        if (key.privateKey() != null) {
            builder.privateKey(read(key.privateKey(), RsaKeyConverters.pkcs8()));
        }
        return builder.build();
    }

    private static <T> T read(Resource resource, Converter<InputStream, T> converter) {
        try (InputStream in = resource.getInputStream()) {
            return converter.convert(in);
        } catch (IOException ex) {
            throw new UncheckedIOException("Cannot read " + resource, ex);
        }
    }
}

HTTP/1.1 500
{"timestamp":"2026-09-18T07:22:38.627Z","status":500,"error":"Internal Server Error","path":"/oauth2/token"}

org.springframework.security.oauth2.jwt.JwtEncodingException: Failed to select a key since there are multiple for the signing algorithm [null]; please specify a selector in NimbusJwsEncoder#setJwkSelector

@ConfigurationProperties("app.signing")
public record SigningKeyProperties(List<Key> keys) {
public record SigningKeyProperties(String activeKeyId, List<Key> keys) {

import org.springframework.security.oauth2.jwt.JwtEncoder;
import org.springframework.security.oauth2.jwt.NimbusJwtEncoder;

    @Bean
    JwtEncoder jwtEncoder(JWKSource<SecurityContext> jwkSource, SigningKeyProperties properties) {
        NimbusJwtEncoder encoder = new NimbusJwtEncoder(jwkSource);
        encoder.setJwkSelector(candidates -> candidates.stream()
                .filter(jwk -> jwk.getKeyID().equals(properties.activeKeyId()))
                .findFirst()
                .orElseThrow());
        return encoder;
    }

14:28:48 RS A: 200
14:29:09 RS A: 401

unzip -l spring-security-oauth2-authorization-server-7.1.1.jar | grep '\.sql'

      232  02-01-1980 00:00   org/springframework/security/oauth2/server/authorization/oauth2-authorization-consent-schema.sql
     2169  02-01-1980 00:00   org/springframework/security/oauth2/server/authorization/oauth2-authorization-schema.sql
     1122  02-01-1980 00:00   org/springframework/security/oauth2/server/authorization/client/oauth2-registered-client-schema.sql

o.f.core.internal.command.DbMigrate      : Migration of schema "public" to version "1 - oauth2 authorization server" failed! Changes successfully rolled back.
SQL State  : 42704
Error Code : 0
Message    : ERROR: type "blob" does not exist
  Position: 833
Location   : db/migration/V1__oauth2_authorization_server.sql (…)
Line       : 34

CREATE TABLE oauth2_registered_client (
    id varchar(100) NOT NULL,
    client_id varchar(100) NOT NULL,
    client_id_issued_at timestamptz DEFAULT CURRENT_TIMESTAMP NOT NULL,
    client_secret varchar(200) DEFAULT NULL,
    client_secret_expires_at timestamptz DEFAULT NULL,
    client_name varchar(200) NOT NULL,
    client_authentication_methods varchar(1000) NOT NULL,
    authorization_grant_types varchar(1000) NOT NULL,
    redirect_uris varchar(1000) DEFAULT NULL,
    post_logout_redirect_uris varchar(1000) DEFAULT NULL,
    scopes varchar(1000) NOT NULL,
    client_settings varchar(2000) NOT NULL,
    token_settings varchar(2000) NOT NULL,
    PRIMARY KEY (id)
);
CREATE TABLE oauth2_authorization (
    id varchar(100) NOT NULL,
    registered_client_id varchar(100) NOT NULL,
    principal_name varchar(200) NOT NULL,
    authorization_grant_type varchar(100) NOT NULL,
    authorized_scopes varchar(1000) DEFAULT NULL,
    attributes text DEFAULT NULL,
    state varchar(500) DEFAULT NULL,
    authorization_code_value text DEFAULT NULL,
    authorization_code_issued_at timestamptz DEFAULT NULL,
    authorization_code_expires_at timestamptz DEFAULT NULL,
    authorization_code_metadata text DEFAULT NULL,
    access_token_value text DEFAULT NULL,
    access_token_issued_at timestamptz DEFAULT NULL,
    access_token_expires_at timestamptz DEFAULT NULL,
    access_token_metadata text DEFAULT NULL,
    access_token_type varchar(100) DEFAULT NULL,
    access_token_scopes varchar(1000) DEFAULT NULL,
    oidc_id_token_value text DEFAULT NULL,
    oidc_id_token_issued_at timestamptz DEFAULT NULL,
    oidc_id_token_expires_at timestamptz DEFAULT NULL,
    oidc_id_token_metadata text DEFAULT NULL,
    refresh_token_value text DEFAULT NULL,
    refresh_token_issued_at timestamptz DEFAULT NULL,
    refresh_token_expires_at timestamptz DEFAULT NULL,
    refresh_token_metadata text DEFAULT NULL,
    user_code_value text DEFAULT NULL,
    user_code_issued_at timestamptz DEFAULT NULL,
    user_code_expires_at timestamptz DEFAULT NULL,
    user_code_metadata text DEFAULT NULL,
    device_code_value text DEFAULT NULL,
    device_code_issued_at timestamptz DEFAULT NULL,
    device_code_expires_at timestamptz DEFAULT NULL,
    device_code_metadata text DEFAULT NULL,
    PRIMARY KEY (id)
);
CREATE TABLE oauth2_authorization_consent (
    registered_client_id varchar(100) NOT NULL,
    principal_name varchar(200) NOT NULL,
    authorities varchar(1000) NOT NULL,
    PRIMARY KEY (registered_client_id, principal_name)
);

CREATE TABLE users (
    id bigint GENERATED ALWAYS AS IDENTITY PRIMARY KEY,
    username varchar(50) NOT NULL UNIQUE,
    password_hash varchar(100) NOT NULL,
    role varchar(20) NOT NULL,
    enabled boolean NOT NULL DEFAULT true
);

-- lab users: alice / Iua27v1PAG-AQ772BVq-TZts, admin / nCluGWX0moLiXhqciaN7dxit
INSERT INTO users (username, password_hash, role) VALUES
    ('alice', '{bcrypt}$2a$10$6W6XLlDl9PKCuXXsYJHhF.X8bha9O.LQ59z0k8oAp49IFp6VWWVlu', 'USER'),
    ('admin', '{bcrypt}$2a$10$Yd8AHFQiCn6rlM4UAwvMTeG8piD0fiziFRUdyAzQuE9ygX5YAVbpK', 'ADMIN');

o.f.core.internal.command.DbMigrate      : Migrating schema "public" to version "1 - oauth2 authorization server"
o.f.core.internal.command.DbMigrate      : Migrating schema "public" to version "2 - users"
o.f.core.internal.command.DbMigrate      : Successfully applied 2 migrations to schema "public", now at version v2 (execution time 00:00.040s)

package com.example.authserver.authorization;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.jdbc.core.JdbcOperations;
import org.springframework.security.crypto.factory.PasswordEncoderFactories;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.oauth2.server.authorization.JdbcOAuth2AuthorizationConsentService;
import org.springframework.security.oauth2.server.authorization.JdbcOAuth2AuthorizationService;
import org.springframework.security.oauth2.server.authorization.OAuth2AuthorizationConsentService;
import org.springframework.security.oauth2.server.authorization.OAuth2AuthorizationService;
import org.springframework.security.oauth2.server.authorization.client.JdbcRegisteredClientRepository;
import org.springframework.security.oauth2.server.authorization.client.RegisteredClientRepository;

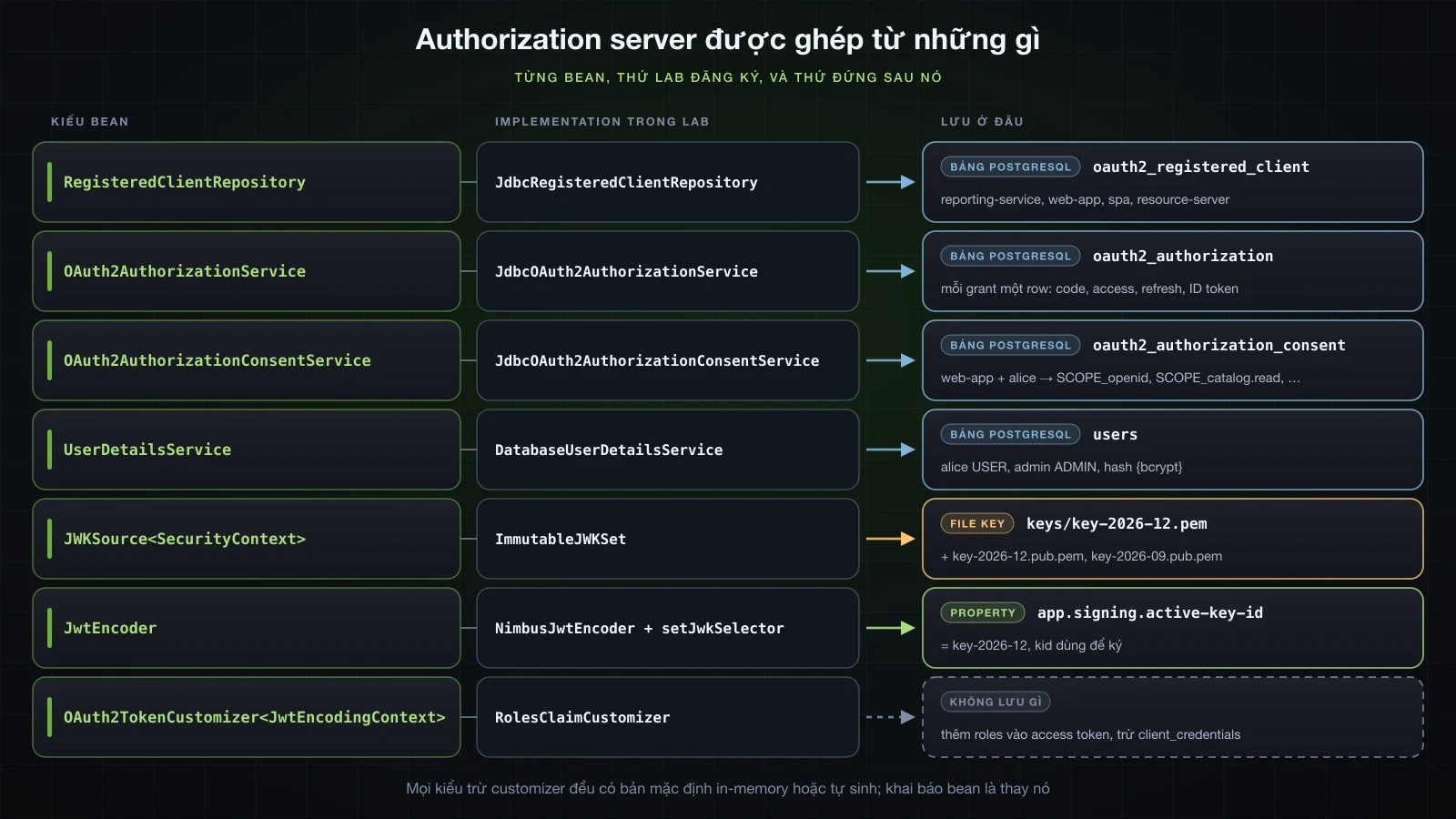

@Configuration
public class AuthorizationPersistenceConfig {

    @Bean
    RegisteredClientRepository registeredClientRepository(JdbcOperations jdbcOperations) {
        return new JdbcRegisteredClientRepository(jdbcOperations);
    }

    @Bean
    OAuth2AuthorizationService authorizationService(JdbcOperations jdbcOperations,
                                                    RegisteredClientRepository registeredClientRepository) {
        return new JdbcOAuth2AuthorizationService(jdbcOperations, registeredClientRepository);
    }

    @Bean
    OAuth2AuthorizationConsentService authorizationConsentService(JdbcOperations jdbcOperations,
                                                                  RegisteredClientRepository registeredClientRepository) {
        return new JdbcOAuth2AuthorizationConsentService(jdbcOperations, registeredClientRepository);
    }

    @Bean
    PasswordEncoder passwordEncoder() {
        return PasswordEncoderFactories.createDelegatingPasswordEncoder();
    }
}

package com.example.authserver.client;

import org.springframework.boot.ApplicationArguments;
import org.springframework.boot.ApplicationRunner;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.oauth2.core.AuthorizationGrantType;
import org.springframework.security.oauth2.core.ClientAuthenticationMethod;
import org.springframework.security.oauth2.core.oidc.OidcScopes;
import org.springframework.security.oauth2.server.authorization.client.RegisteredClient;
import org.springframework.security.oauth2.server.authorization.client.RegisteredClientRepository;
import org.springframework.security.oauth2.server.authorization.settings.ClientSettings;
import org.springframework.stereotype.Component;

@Component
public class ClientRegistrations implements ApplicationRunner {

    private final RegisteredClientRepository clients;
    private final PasswordEncoder passwordEncoder;

    public ClientRegistrations(RegisteredClientRepository clients, PasswordEncoder passwordEncoder) {
        this.clients = clients;
        this.passwordEncoder = passwordEncoder;
    }

    @Override
    public void run(ApplicationArguments args) {
        // lab secrets, generated with openssl rand for this lab only
        clients.save(RegisteredClient.withId("reporting-service")
                .clientId("reporting-service")
                .clientSecret(passwordEncoder.encode("YKEH82IfQ7fwVscNczMHPi-X"))
                .clientAuthenticationMethod(ClientAuthenticationMethod.CLIENT_SECRET_BASIC)
                .authorizationGrantType(AuthorizationGrantType.CLIENT_CREDENTIALS)
                .scope("catalog.read")
                .build());
        clients.save(RegisteredClient.withId("web-app")
                .clientId("web-app")
                .clientSecret(passwordEncoder.encode("qPzyIVmf35_MSv6B67GLD6-i"))
                .clientAuthenticationMethod(ClientAuthenticationMethod.CLIENT_SECRET_BASIC)
                .authorizationGrantType(AuthorizationGrantType.AUTHORIZATION_CODE)
                .authorizationGrantType(AuthorizationGrantType.REFRESH_TOKEN)
                .redirectUri("http://127.0.0.1:10214/login/oauth2/code/web-app")
                .scope(OidcScopes.OPENID)
                .scope(OidcScopes.PROFILE)
                .scope("catalog.read")
                .scope("catalog.write")
                .clientSettings(ClientSettings.builder().requireAuthorizationConsent(true).build())
                .build());
        clients.save(RegisteredClient.withId("spa")
                .clientId("spa")
                .clientAuthenticationMethod(ClientAuthenticationMethod.NONE)
                .authorizationGrantType(AuthorizationGrantType.AUTHORIZATION_CODE)
                .redirectUri("http://127.0.0.1:10214/spa/callback")
                .scope(OidcScopes.OPENID)
                .scope("catalog.read")
                .build());
    }
}

package com.example.authserver.user;

import org.springframework.jdbc.core.simple.JdbcClient;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;

@Service
public class DatabaseUserDetailsService implements UserDetailsService {

    private final JdbcClient jdbcClient;

    public DatabaseUserDetailsService(JdbcClient jdbcClient) {
        this.jdbcClient = jdbcClient;
    }

    @Override
    public UserDetails loadUserByUsername(String username) {
        return jdbcClient.sql("select username, password_hash, role, enabled from users where username = ?")
                .param(username)
                .query((rs, rowNum) -> User.withUsername(rs.getString("username"))
                        .password(rs.getString("password_hash"))
                        .roles(rs.getString("role"))
                        .disabled(!rs.getBoolean("enabled"))
                        .build())
                .optional()
                .orElseThrow(() -> new UsernameNotFoundException(username));
    }
}

docker exec sba-a14-pg psql -U demo -d demo -c "select id, client_id, left(client_secret, 20) as client_secret, authorization_grant_types from oauth2_registered_client order by id"

        id         |     client_id     |    client_secret     |    authorization_grant_types
-------------------+-------------------+----------------------+----------------------------------
 reporting-service | reporting-service | {bcrypt}$2a$10$U30Ui | client_credentials
 spa               | spa               |                      | authorization_code
 web-app           | web-app           | {bcrypt}$2a$10$ZnQwD | refresh_token,authorization_code
(3 rows)

 registered_client_id |  principal_name   | authorization_grant_type |      authorized_scopes      | code |    access_token_expires_at    |   refresh_token_expires_at    | id_token
----------------------+-------------------+--------------------------+-----------------------------+------+-------------------------------+-------------------------------+----------
 reporting-service    | reporting-service | client_credentials       | catalog.read                | f    | 2026-09-18 07:36:12.302952+00 |                               | f
 reporting-service    | reporting-service | client_credentials       | catalog.read                | f    | 2026-09-18 07:36:24.624077+00 |                               | f
 web-app              | alice             | authorization_code       | openid,profile,catalog.read | t    | 2026-09-18 07:36:32.760403+00 | 2026-09-18 08:31:32.765385+00 | t
(3 rows)

 registered_client_id | principal_name |                  authorities
----------------------+----------------+-----------------------------------------------
 web-app              | alice          | SCOPE_openid,SCOPE_catalog.read,SCOPE_profile
(1 row)

{
  "active": true,
  "sub": "alice",
  "aud": [
    "web-app"
  ],
  "nbf": 1789716692,
  "scope": "openid profile catalog.read",
  "iss": "http://localhost:8214",
  "exp": 1789716992,
  "iat": 1789716692,
  "jti": "66e65286-fc71-4cc2-8447-e16f3e60d91e",
  "client_id": "web-app",
  "token_type": "Bearer"
}

package com.example.authserver.token;

import java.util.ArrayList;
import java.util.List;
import java.util.stream.Collectors;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.oauth2.core.AuthorizationGrantType;
import org.springframework.security.oauth2.server.authorization.OAuth2TokenType;
import org.springframework.security.oauth2.server.authorization.token.JwtEncodingContext;
import org.springframework.security.oauth2.server.authorization.token.OAuth2TokenCustomizer;
import org.springframework.stereotype.Component;

@Component
public class RolesClaimCustomizer implements OAuth2TokenCustomizer<JwtEncodingContext> {

    @Override
    public void customize(JwtEncodingContext context) {
        if (!OAuth2TokenType.ACCESS_TOKEN.equals(context.getTokenType())
                || AuthorizationGrantType.CLIENT_CREDENTIALS.equals(context.getAuthorizationGrantType())) {
            return;
        }
        List<String> roles = context.getPrincipal().getAuthorities().stream()
                .map(GrantedAuthority::getAuthority)
                .filter(authority -> authority.startsWith("ROLE_"))
                .map(authority -> authority.substring("ROLE_".length()))
                .collect(Collectors.toCollection(ArrayList::new));
        context.getClaims().claim("roles", roles);
    }
}

LAB principal=OAuth2ClientAuthenticationToken authorities=[] grant=client_credentials
LAB principal=UsernamePasswordAuthenticationToken authorities=[ROLE_ADMIN, FactorGrantedAuthority [authority=FACTOR_PASSWORD, issuedAt=2026-09-18T07:32:14.259124Z]] grant=authorization_code

{
  "kid": "key-2026-12",
  "alg": "RS256"
}

{
  "sub": "admin",
  "aud": "web-app",
  "nbf": 1789716758,
  "scope": [
    "openid",
    "profile",
    "catalog.read"
  ],
  "roles": [
    "ADMIN"
  ],
  "iss": "http://localhost:8214",
  "exp": 1789717058,
  "iat": 1789716758,
  "jti": "037dc0ef-f8c2-46aa-807c-767e486f3234"
}

== admin /api/me
{"name":"admin","authorities":["FACTOR_BEARER","ROLE_ADMIN"]}
== admin /api/admin/report
HTTP/1.1 200
{"period":"2026-09","orders":42}
== alice /api/me
{"name":"alice","authorities":["FACTOR_BEARER","ROLE_USER"]}
== alice /api/admin/report
HTTP/1.1 403
WWW-Authenticate: Bearer realm="catalogue", error="insufficient_scope", error_description="The request requires higher privileges than provided by the access token.", error_uri="https://tools.ietf.org/html/rfc6750#section-3.1"
Content-Type: application/problem+json
Content-Length: 123

{"detail":"You are not allowed to perform this operation.","instance":"/api/admin/report","status":403,"title":"Forbidden"}

java.lang.IllegalArgumentException: Could not resolve type id 'java.util.ImmutableCollections$ListN' as a subtype of `java.lang.Object`: Configured `PolymorphicTypeValidator` (of type `tools.jackson.databind.jsontype.BasicPolymorphicTypeValidator`) denied resolution
 at [Source: REDACTED (`StreamReadFeature.INCLUDE_SOURCE_IN_LOCATION` disabled); byte offset: #UNKNOWN] (through reference chain: java.util.LinkedHashMap["metadata.token.claims"]->java.util.LinkedHashMap["roles"])
	at org.springframework.security.oauth2.server.authorization.JdbcOAuth2AuthorizationService$AbstractOAuth2AuthorizationRowMapper.parseMap(JdbcOAuth2AuthorizationService.java:723)

docker exec sba-a14-pg psql -U demo -d demo -At -c "select access_token_metadata from oauth2_authorization where principal_name='alice' order by access_token_issued_at desc limit 1" | jq -c '.["metadata.token.claims"].roles, .["metadata.token.claims"].scope'

["java.util.ImmutableCollections$ListN",["USER"]]
["java.util.Collections$UnmodifiableSet",["openid","catalog.read"]]

                .map(authority -> authority.substring("ROLE_".length()))
                .toList();
                .collect(Collectors.toCollection(ArrayList::new));
        context.getClaims().claim("roles", roles);

import org.springframework.security.oauth2.server.authorization.settings.OAuth2TokenFormat;
import org.springframework.security.oauth2.server.authorization.settings.TokenSettings;

        clients.save(RegisteredClient.withId("reporting-service")
                .clientId("reporting-service")
                .clientSecret(passwordEncoder.encode("YKEH82IfQ7fwVscNczMHPi-X"))
                .clientAuthenticationMethod(ClientAuthenticationMethod.CLIENT_SECRET_BASIC)
                .authorizationGrantType(AuthorizationGrantType.CLIENT_CREDENTIALS)
                .scope("catalog.read")
                .tokenSettings(TokenSettings.builder().accessTokenFormat(OAuth2TokenFormat.REFERENCE).build())
                .build());

        clients.save(RegisteredClient.withId("resource-server")
                .clientId("resource-server")
                .clientSecret(passwordEncoder.encode("XYs4XlGxsLbXcZ99uD9CdCYa"))
                .clientAuthenticationMethod(ClientAuthenticationMethod.CLIENT_SECRET_BASIC)
                .authorizationGrantType(AuthorizationGrantType.CLIENT_CREDENTIALS)
                .build());

{"access_token":"FAsDhjb1vJGSCrsCsDCcWZIYZH5Itn0UgcO94fg21Eqgu5YguvtfWdq-6pe_J2Yr5VDkOytxdg6RL_okoE_68XYGoYwZvGG4k25bLjYuT_WcHoI0GSzZ2P5jIGXdcxA6","scope":"catalog.read","token_type":"Bearer","expires_in":299}

curl -s -u resource-server:XYs4XlGxsLbXcZ99uD9CdCYa --data-urlencode "token=$OPAQUE" http://localhost:8214/oauth2/introspect | jq .

{
  "active": true,
  "sub": "reporting-service",
  "aud": [
    "reporting-service"
  ],
  "nbf": 1789716917,
  "scope": "catalog.read",
  "iss": "http://localhost:8214",
  "exp": 1789717217,
  "iat": 1789716917,
  "jti": "a0dfd384-8fb7-48a3-8264-c574a1afbe5d",
  "client_id": "reporting-service",
  "token_type": "Bearer"
}

import org.springframework.context.annotation.Profile;

@Configuration
@Profile("!opaque")
public class SecurityConfig {

package com.example.resourceserver.common;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Profile;
import org.springframework.security.config.Customizer;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.web.SecurityFilterChain;

@Configuration
@Profile("opaque")
public class OpaqueTokenSecurityConfig {

    @Bean
    SecurityFilterChain apiSecurityFilterChain(HttpSecurity http, ProblemDetailSecurityHandler problemHandler) {
        http
                .securityMatcher("/api/**")
                .authorizeHttpRequests(auth -> auth
                        .requestMatchers("/api/admin/**").hasRole("ADMIN")
                        .anyRequest().authenticated())
                .oauth2ResourceServer(oauth2 -> oauth2
                        .opaqueToken(Customizer.withDefaults())
                        .authenticationEntryPoint(problemHandler)
                        .accessDeniedHandler(problemHandler))
                .exceptionHandling(exceptions -> exceptions
                        .authenticationEntryPoint(problemHandler)
                        .accessDeniedHandler(problemHandler))
                .csrf(csrf -> csrf.disable())
                .sessionManagement(session -> session.sessionCreationPolicy(SessionCreationPolicy.STATELESS));
        return http.build();
    }
}
